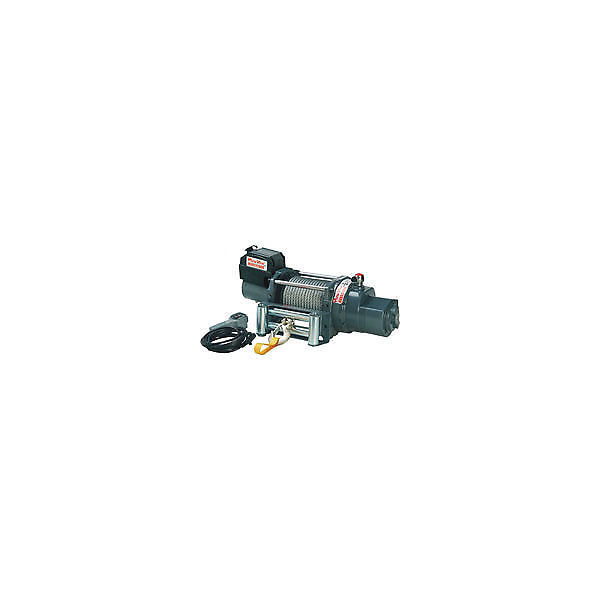

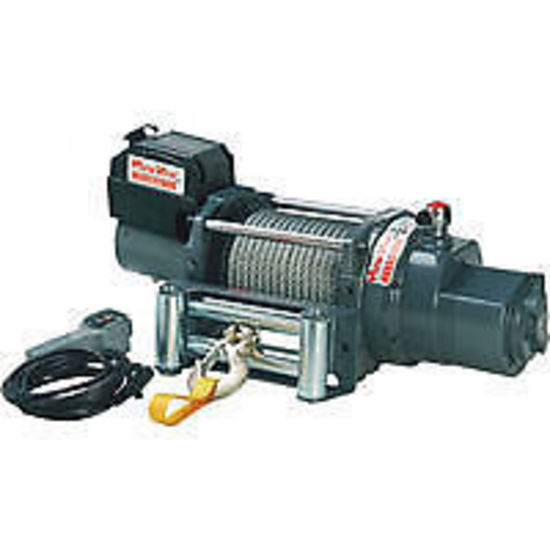

NVS12000NVDS12000 SPECSRated line pull:12000lbs(4540kgs)single lineMotor(Series wound): DC 12V with 2.7hp/2.0kW outputGear train:5 stage gearGear ratio:520:1?Low Speed?230:1?High Speed?Clutch:Sliding ring gearBraking action:Automatic in the ratchet wheelFairlead:4-way roller fairleadWire rope:2/5"?95'(10.3mm?29m)Drum size:3.46"?8.8"(88mm?224mm)Dimensions:27"?8.5"?9.811.34"(686mm?215mm?288mm)Bolt pattern:10"?4.5"(254mm?114.3mm)Net Weight:156lbs(71kgs)

"Low Speed" Line speed and motor current (first layer)
Line pull(Lbs/Kgs)
Line speed(FPM/MPM)
Motor current(Amps)
0/0
8.8/2.7
70
4000/1816
8.2/2.5
115
6000/2724
6.6/2.0
180
8000/3632
5.2/1.6
205
10000/4540
4.8/1.5
250
12000/5448
4.3/1.3
270

"High Speed" Line speed and motor current (first layer)
Line pull(Lbs/Kgs)
Line speed(FPM/MPM)
Motor current(Amps)
0/0
20.7/6.3
75
4000/1816
10.5/3.2
240
6000/2724
8.2/2.5
320

Line pull and cable capacity
Layer of cable
Rated line pull per layer(Lbs/Kgs)
Cable capacity per layer(Ft/M)
1
12000/5448
22/6.7
2
9921/4504
47.4/14.5
3
8456/3839
75.8/23.1
4
7368/3345
95/29
